Ticon Mandrel – 2.5″ DIA 90 Degree 1mm WT 3.75″ CLR 6.5″ Leg/8″ Leg (101-06353-0000)

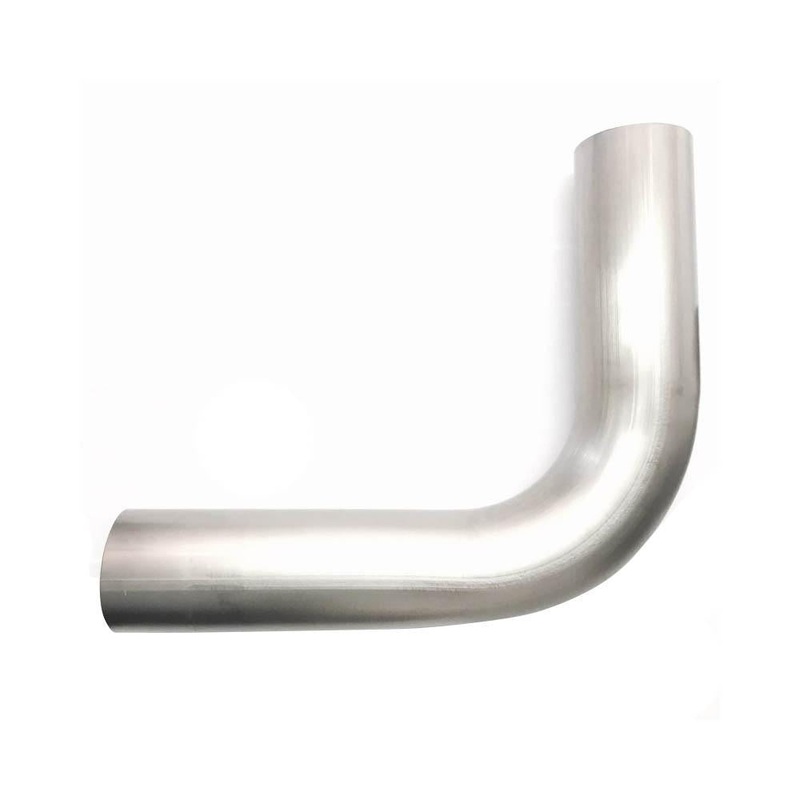

2.5″ DIA 90 Degree 1mm WT 3.75″ CLR 6.5″ Leg/8″ Leg Titanium Mandrel by Ticon Industries

Ticon Industries Titanium 90 Mandrel Bends have a 1mm(.039) wall thickness to work with our 2.5″ (inch) tubing.

Bent from our 1mm thin wall commercially pure Grade 1 Titanium you wont find a lighter and higher quality bend on the market.

Each mandrel is individually bent, the ends are laser cut and then they are ultrasonically cleaned to provide a ready to weld solution right out of the package.

Features

• Material: CP1 Titanium
• Tubing Diameter: 2.5 Inch
• Wall Thickness: 1mm /.039″
• Bend Degree: 90
• Bend Radius: 1.5D / 3.75″
• Leg Lengths: 7″ / 9″

Benefits

• Provide a perfect wrinkle free bend every time.
• Our mandrel bends will drastically reduce the fabrication time needed for producing a full Titanium exhaust system.

Applications

• Universal

What’s In The Box?

• 1 – Titanium Mandrel Bend

Warranty

• Manufacturer Standard Warranty.
