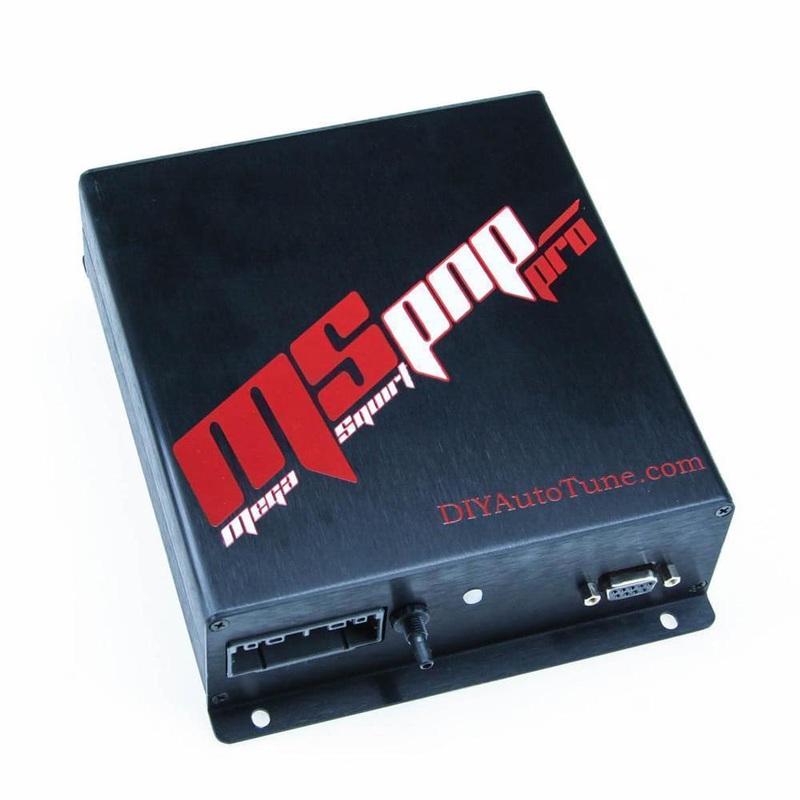

MegaSquirt MS3Pro PnP ECU | 1994-1995 Mazda MX-5 Miata Manual (MSPNPPro-MM9495)

94-95 Mazda MX-5 Miata MS3ProPnP ECUStandalone Engine Management System by MegaSquirt

MS3Pro based Miata 9495 MS3Pro PnP takes plug and play engine management to the next level! Easy to Use and Install!

Fully Plug and Play Installation No wiring required for basic functionality. The base map is pre-loaded to help your engine start on the first turn of the key.

Real time tuning and 8 GB internal data logging with a laptop connection. Supports most aftermarket wideband sensors.

Features

• 1616 Fuel Tables allow high resolution tuning
• 1616 Ignition Tables
• Multiple Acceleration enrichment strategies
• Closed Loop Idle Speed Control
• Air Conditioner Control
• 4 sequential fuel injector channels with individual trim tables
• Onboard peak and hold drivers support both high and low impedance injectors No external ballast resistor is needed!
• Allows removal of stock airflow meter
• 1212 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
• VVT support if swapping to a later VVT motor
• Programmable voltage regulator control for NB alternator swaps
• Multiple traction control strategies
• Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
• Real time barometric correction
• Internal 4-bar MAP sensor reads up to 44PSI of boost
• Overboost protection
• Closed loop boost control (Requires EBC solenoid kit stock boost control solenoid does not allow adjusting boost level)
• Rally style anti lag
• Water injection control on/off or variable
• Knock sensor input with adjustable sensitivity, crank angle windowing, and more
• Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
• Input for flex fuel sensor switch between E85 and gasoline on the fly!
• CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors… the possibilities are limitless!

Applications

• 1994 – 1995 Mazda MX-5 Miata with manual transmission

What’s In The Box?

• 1 – MS3Pro PnP ECU
• 1 – Serial Tuning Cable (6′)
• 1 – Vacuum Hose (6′)
• 4 – Mounting Screws
• 1 – USB Memory Stick
• Tuning Software

References

• Installation Instructions
• User Manual

Warranty

• Manufacturer Standard Warranty
