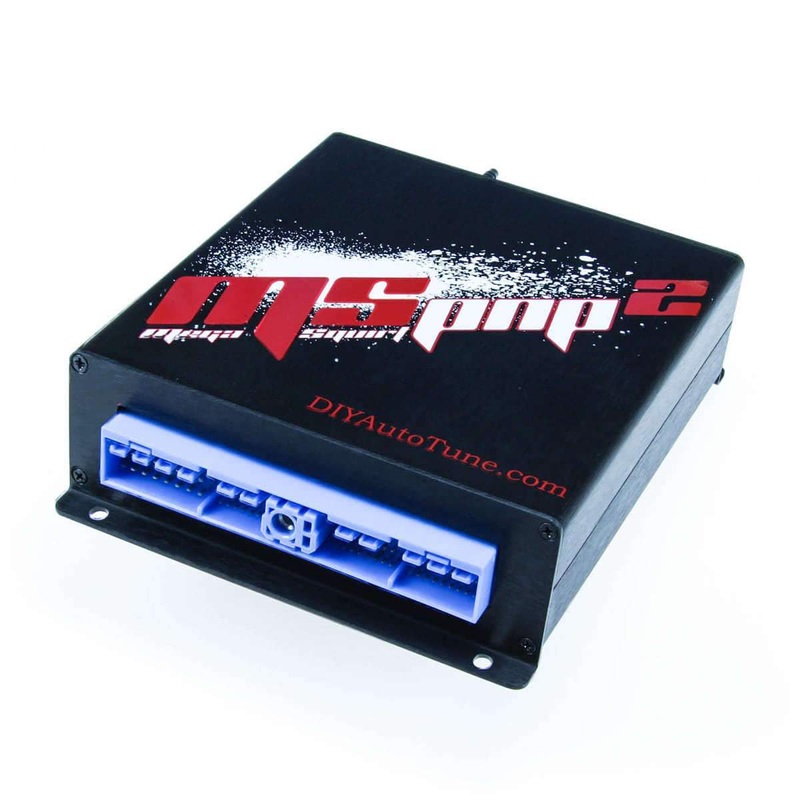

MegaSquirt Gen2 PnP ECU | 1989-1994 Nissan S13 SR20DET (MSPNP2-NJ8994)

1989-1994 Nissan S13 SR20DETMegaSquirt Gen2 PnPEngine Management System by MegaSquirt

Fully Plug and Play Installation No wiring required for basic functionality. Average install time is under 1 hour! SR20DET base maps is pre-loaded to help your engine start on the first turn of the key.

Supports most aftermarket wideband sensors and offers real time tuning and data logging with a laptop connection.

Features

• 1616 Fuel Tables allow high resolution tuning
• 1212 Ignition Tables
• Multiple Acceleration enrichment strategies
• Closed Loop Idle Speed Control
• Air Conditioner Control
• Up to 4 sequential fuel injector channels with individual trim tables (minor wiring change required if you want to enable sequential injection, as most of these cars were not wired for sequential injection from the factory)
• Onboard peak and hold drivers support both high and low impedance injectors No external ballast resistor is needed!
• Allows removal of stock airflow meter
• 1212 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
• Built-in 2-step rev limiter / launch control with flat shift
• Real time barometric correction
• Internal 4-bar MAP sensor reads up to 44PSI of boost
• Overboost protection
• Closed loop boost control (Requires boost solenoid kit)
• Knock sensor input with adjustable sensitivity
• Headphone output for knock sensor listen for knock while you tune!
• Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
• Input for flex fuel sensor switch between E85 and gasoline on the fly!
• CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors… the possibilities are limitless!

Please Note: Installation of an IAT sensor and trigger disc is required. Both are included with this ECU.

Applications

• 1989-1994 Nissan S13 SR20DET w/ Manual Transmission

What’s In The Box?

• 1 – MegaSquirt Gen2 PnP ECU
• 1 – Serial tuning cable (6)
• 1 – Rear Options connector and pins
• 1 – Vacuum Hose for MAP Signal (6′)
• 4 – Screws for ECU mounting
• 1 – Documentation USB Stick
• IAT Sensor and wires
• Tuning Software

References

• User Manual
• Installation Guide
• Firmware and Software
• Base Maps

Warranty

• Manufacturer Standard Warranty
